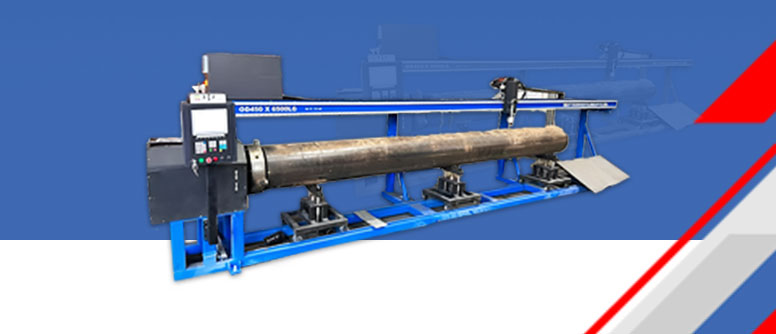

CNC Plasma Pipe Profile Cutting Machine
Technical Parameters
| Technical Parameters | Specifications |
|---|---|
| Effective Cutting Length | 7000mm as per requirement max 40 mtr length |
| Effective Cutting Width | 3000mm as per requirement max 5 mtr length |
| Moving Speed | 0-25000 mm/min OXY FUEL: 0-5000 mm/min |
| Weight | 2000 kg approx |
| Power Source | Hypertherm powermax series / LGK series/ IWI |
| Plasma Cutting Speed | According to plasma source |
| Cutting Thickness | According to plasma source |
| CNC System | FLMC controller 2300B |
| Auto Torch Height Controller | Anti-collision with arc voltage with IHS |
| Programming Software | FLCAM |
| Drive Mode | Dual drive with servo motor/ stepper motor |
| Servo System | Panasonic/ Fuji |
| Gearbox | SHIMPO /ZD or similar |
| Rack & Pinion Assembly | 20*20 mm cross section with 1.5 modules |
| Drag Chain | Fully enclosed drag chain for machine writing safely |
| Linear Guide | HiWin |
| Strip Cutting Tourches | 4 tourch/ 6 tourch/ 8 tourch |
| Strip Cutting Tourch Movement | Manual / Lifter / Auto height system |
