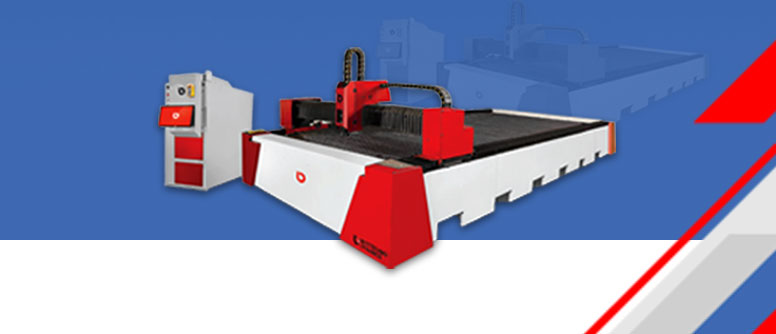

CNC Fiber Laser Cutting Machine Extra Long
Technical Parameters
| Model No | BTD-L1565 | BTD-L2065 | BTD-L2565 | BTD- L30125 |
|---|---|
| Working Area | 1500x6500mm | 2000x6500mm | 2500x6500mm | 3000x12500mm |
| Machine | Single Pallet Fiber Laser Cutting Machine |
| Z axis | 120mm |
| Laser Source | Ipg/Jpt/Max/Raycus |
| Cutting Head | Autofocus Raytools / Precitech / Ospri |
| LM Guideway | Hiwin Y-30mm X-25mm Z-20mm |
| Rack & Pinion | YYC 25x25mm Grounded |
| Servo drive | Yaskawa/Fuji |
| Electricals | Schneider |
| Gantry | Aluminum Aircraft grade Extrusion / Mild Steel |
| Max Acceleration | 1.4G |
| Max Moving Speed | 140m/min |
| Position Accuracy | 0.03mm |
| Pallet Changer Possibilities | Yes |
